Fonts, Tablature, SVG, and a Demo

This was a pretty productive weekend. I got a lot working, and a lot to show off.

First, a credit to Simon Tatham, who created the awesome Gonville font, which I use for the renderer. Before finding Gonville, I tried to draw many of the glyphs myself and suffice to say, it didn't work out too well.


Gonville by Simon Tatham

Thank you Simon for creating this brilliant work of art!

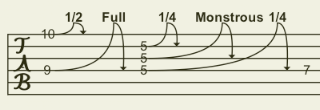

This week was all about the tablature. First, I added support for bend-and-release.

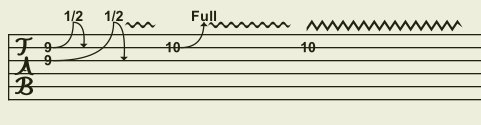

Then, I added support for soft and harsh vibratos.

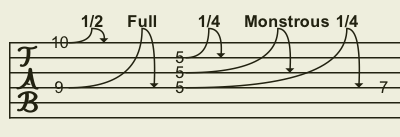

I added support for custom note annotations.

There are a lot of things you can do with note annotations.

I also added full support for SVG. Yep, full support. With a little help from raphael.js, it was actually pretty straightforward to implement. I created a RaphaelContext class that implements the HTML5 Canvas API, and delegates all the drawing calls to Raphael. So now, the library uses HTML5 Canvas by default, unless you explicitly include the Raphael JavaScript library in your script sources.

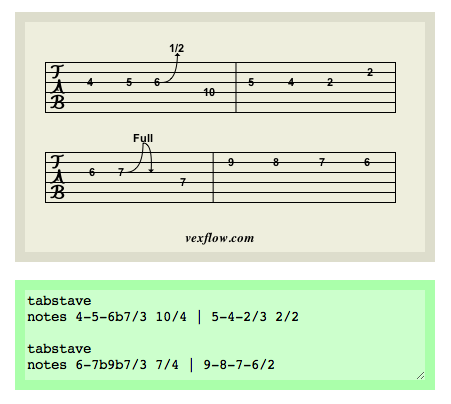

I created the beginnings of simple tablature language to render guitar tab. It's called VexTab and it's very very alpha. Here's an example:

Anyhow, all this while you've been seeing screenshots of rendered notation, and no real HTML5-based demos. So, this time, I put up a new demo. All JavaScript. All SVG. Here it is:

A VexFlow Demo: The VexTab Tutorial Page

Hope you like it, and keep those comments coming.
